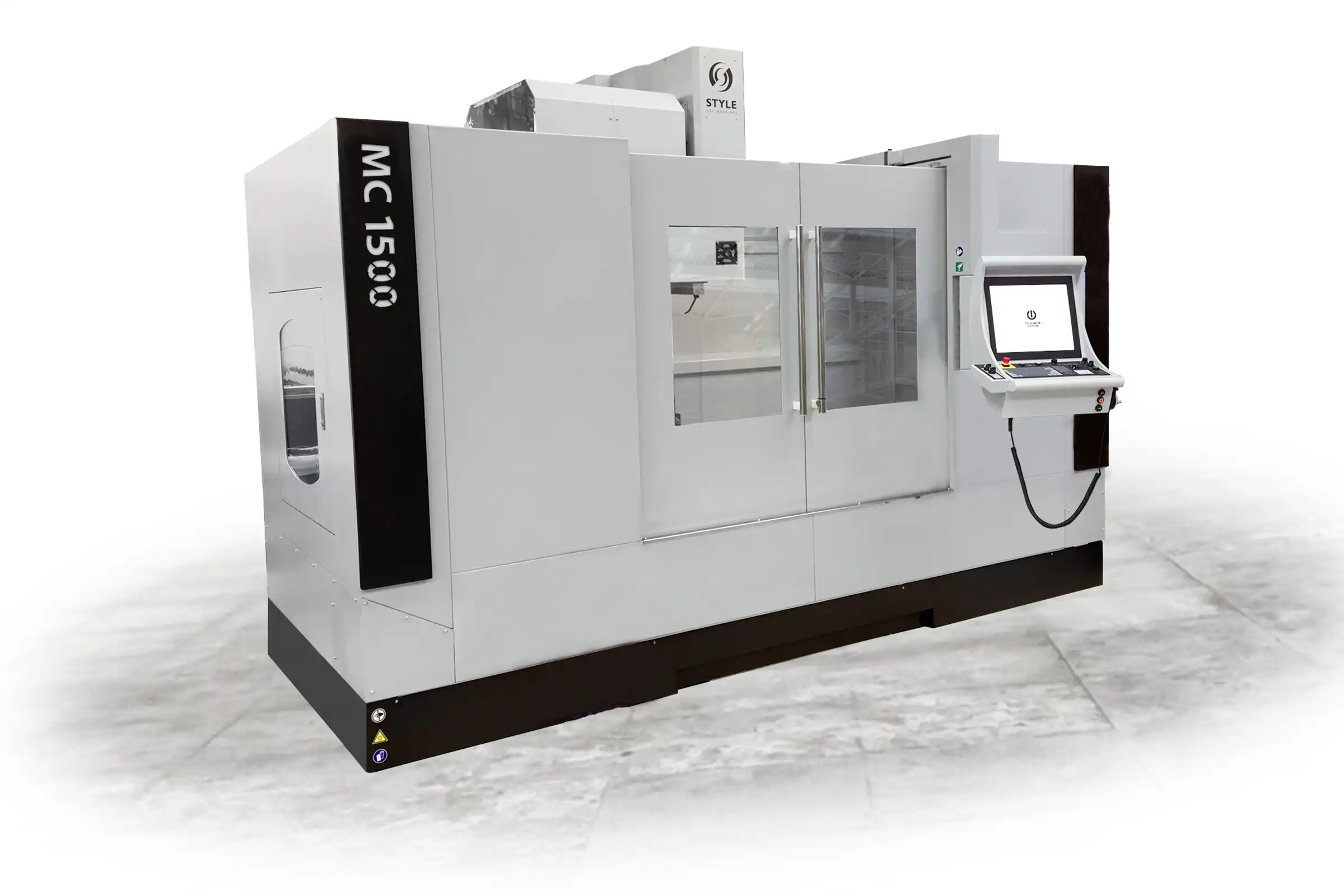

De STYLE MC serie zijn de juiste bewerkingscentra voor de veeleisende verspaners. Bewerkingscentra staan bekend om hun groot werkbereik en veelzijdigheid als het om verspaning van onderdelen gaat. Deze bewerkingscentra zijn geschikt voor enkelstuks en kleine series. De STYLE MC 1500 is een CNC gestuurde machine met een zeer toegankelijke bediening met altijd goed zicht op tekening en product.
Wij ondersteunen u graag!
Erwin Koelewijn
Sales Noord & Oost Nederland
De MC 1500 bewerkingscentrum is uitgerust met een zeer stabiel gietijzeren frame met lineair geleidingen. De machine is gebouwd en ontworpen door echte Nederlandse machinebouwers. De bewerkingscentrum MC-serie is een lijn gesloten, compacte freesmachines met een X-slag van respectievelijk 1500 mm, een moderne CNC machine voor het produceren en flexibel bewerken van onderdelen. De besturing biedt beginnende verspaners de toegankelijkheid om al met een paar uur training aan de slag te kunnen en de ervaren operator de tools om hoogwaardige complexe producten te maken.
Programmeren vanaf kantoor
Al uw programma’s die u wilt gaan frezen kunt u op een USB-stick plaatsen, maar ook is het mogelijk om de computer van de freesbank in uw netwerk te plaatsen. Hierdoor kunt u buiten de machine om uw programma’s programmeren.
| Machine | STYLE MC 1500 | |
|---|---|---|
| Slag X-as | mm | 1500 |
| Slag Y-as | mm | 680 |
| Slag Z-as | mm | 880 |
| Tafelafmeting | mm | 1700 x 600 |
| Max. Tafelbelasting | kg | 1000 |
| Werkhoogte tafel | mm | 860 |
| Afstand spilneus-tafel | mm | 100 – 980 |
| Afstand spilneus-kolom | mm | 720 |
| Hoofdspindel | STYLE MC 1500 | |
|---|---|---|
| Motorvermogen | kW | 11 / 15 / 18.5 |
| Max. toerental | rpm | 10000 – 12000 |
| Spindelopname | BT – SK/DIN698711 | 40 |
1 Kies uit spindelopname BT of SK/DIN69871
| X, Y- en Z-as | STYLE MC 1500 | |
|---|---|---|
| Ijlgang | m/min | 24 |
| Voeding | m/min | 12 |
| Wisselaar | STYLE MC 1500 | |
|---|---|---|
| Automatische gereedschapswisselaar | # | 20 / 24 / 30 |
| Algemeen | STYLE MC 1500 | |
|---|---|---|
| Gewicht | kg | 8800 |
| Machine afmetingen (l/b/h) | m | 4.2 x 2.8 x 3.2 |
