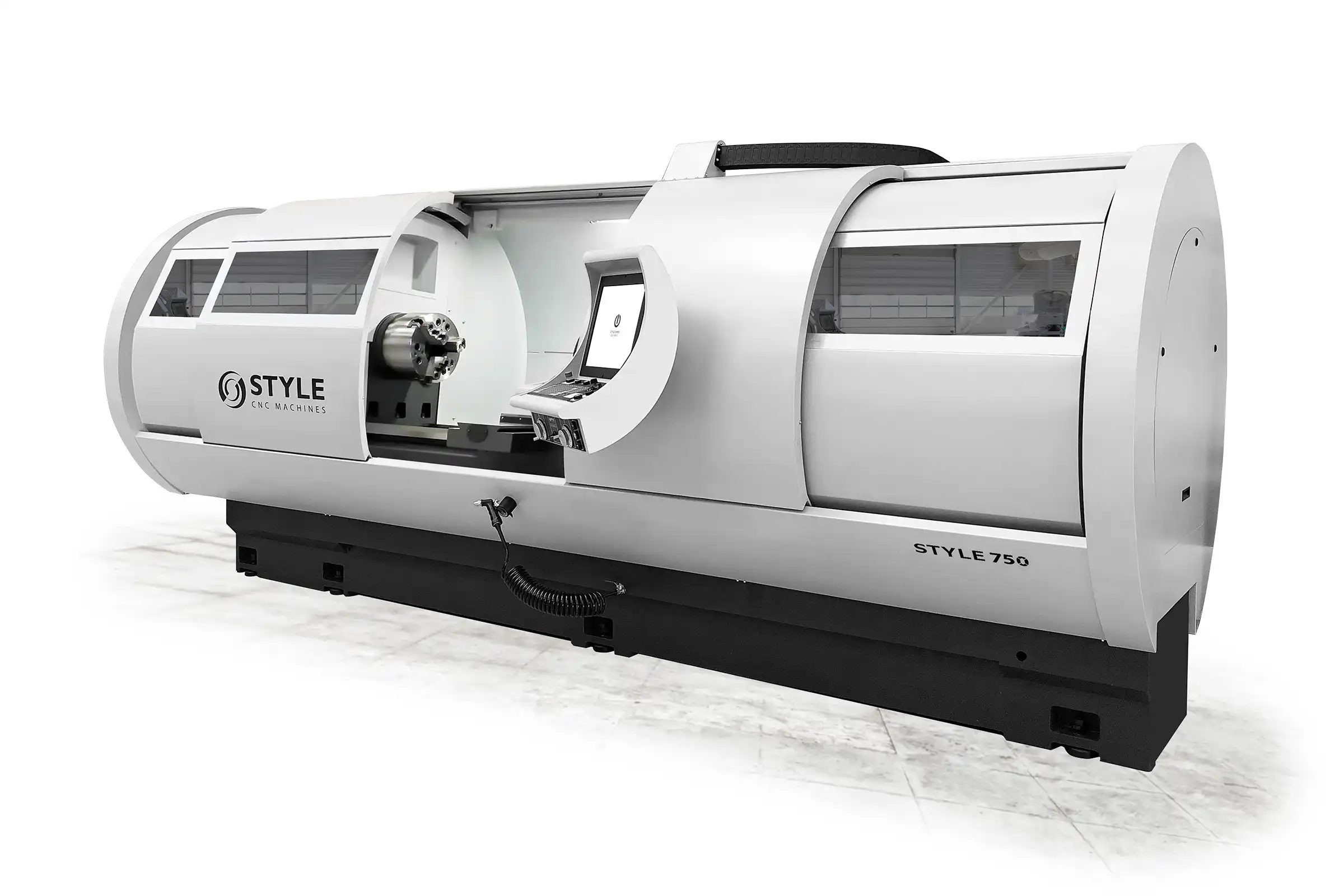

De STYLE 750 is een echte krachtpatser voor maatwerk in enkelstuks en kleine series. Deze CNC draaibank is te verkrijgen met een verzwaarde losse kop zodat stabiliteit altijd is gegarandeerd. De stevige constructie met een gietijzeren frame staat garant voor hoge betrouwbaarheid en optimale resultaten. De STYLE 750 draaibank biedt u alle gewenste flexibiliteit voor het draaien van de meest uiteenlopende producten.
Wij ondersteunen u graag!
Erwin Koelewijn
Sales Noord & Oost Nederland
Onze R&D afdeling ontwikkelt iedere draaibank tot in de puntjes door. Al 25 jaar is STYLE een van de meest innovatieve Nederlandse fabrikanten van CNC draaibanken en freesbanken. De unieke STYLE Besturing is perfect om snel en gemakkelijk te kunnen produceren, al binnen een dag training kunt u aan de slag met de STYLE 750 draaibank. De toegankelijke CNC besturing is geschikt voor de beginnende verspaner en er zijn uitgebreide functionaliteiten voor de ervaren operator.
Programmeren vanaf kantoor
Al uw programma’s die u wilt gaan draaien kunt u op een USB-stick plaatsen, maar ook is het mogelijk om de computer van de draaibank in uw netwerk te plaatsen. Hierdoor kunt u buiten de machine om uw programma’s programmeren.
Machine | STYLE 750 | |
---|---|---|
Draaidiameter over bed | mm | 750 |
Draaidiameter over support | mm | 530 |
Afstand tussen centers | mm | 1000 / 2000 / 3000 / 4000 / 5000 |
Bedbreedte | mm | 450 |
Max. gewicht tussen de centers | kg | 1800 / 23002 |
2 Mogelijk door optionele zwaardere losse kop
Hoofdspindel | STYLE 750 | |
---|---|---|
Motorvermogen (S6) | kW | 22 / 26 / 37 |
Doorlaat hoofdspindel | ø mm | 105 / 155 / 188 / 230 |
Max toerental | rpm | 2000 (105) / 1500 (155) |
1250 (180) / 1000 (230) | ||
Spindel opname | A2-11 / A2-15 |
X- en Z-as | STYLE 750 | |
---|---|---|
Ijlgang | m/min | 8 |
Voeding | m/min | 2 |
Losse kop | STYLE 750 | |
---|---|---|
Pinole | ø mm | 105 / 1252 |
Slag pinole | mm | 225 |
Opname pinole | MK | 5 / 6 |
2 Mogelijk door optionele zwaardere losse kop
Algemeen | STYLE 750 | |
---|---|---|
Gewicht | kg | 4950 / 5950 / 7050 / 8150 / 9250 |
Machine afmetingen (l/b/h) | m | 3.3 x 2.3 x 2.2 (1000) |
4.3 x 2.3 x 2.2 (2000) | ||
5.3 x 2.3 x 2.2 (3000) | ||
6.3 x 2.3 x 2.2 (4000) | ||
7.3 x 2.3 x 2.2 (5000) |
Opties | STYLE 750 |
---|---|
Automatische spanentransporteur | standaard |
Automatische gereedschapswisselaar | optie |
Gepositioneerde C-as | optie |
Automatische gereedschapswisselaar met aangedreven gereedschap | optie |
