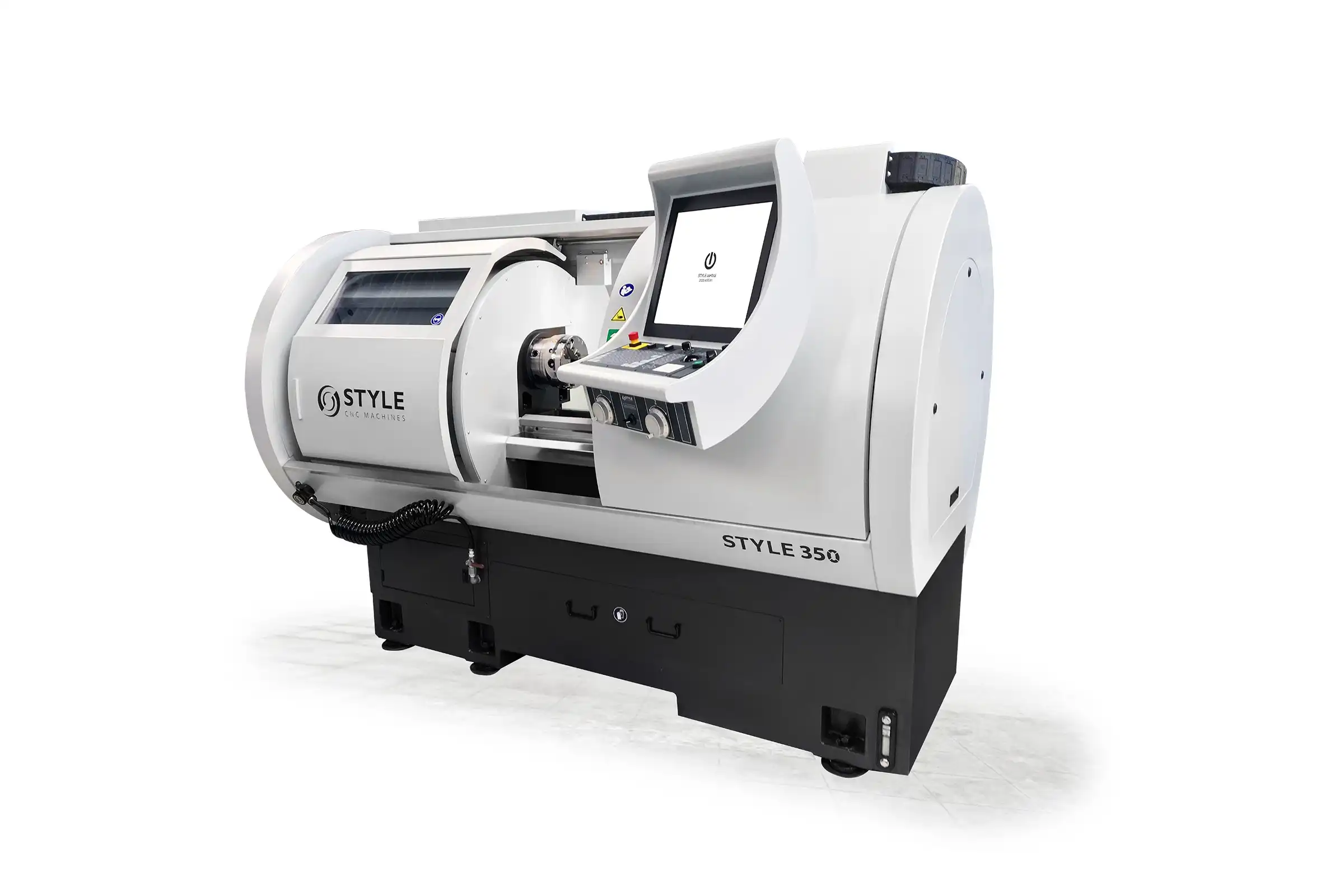

De STYLE 350 draaibank is uitermate geschikt voor het verspanen van enkelstuks en kleine series. Een zwaar gietijzeren frame geeft de machine een zeer solide basis. Het ergonomische ontwerp combineert optimale toegankelijkheid en bedieningsgemak met voldoende veiligheid. Deze machine biedt u alle gewenste flexibiliteit voor het draaien van de meest uiteenlopende producten.
Wij ondersteunen u graag!
Erwin Koelewijn
Sales Noord & Oost Nederland
Ook één van de kleinere draaibanken uit de STYLE draaibanken serie is uitgevoerd met de unieke STYLE besturing. De draaibank is uitgerust met de nieuwste STYLE besturing die het proces van het verspanen van uw producten aanzienlijk versneld en tevens hoogwaardige producten maakt. Uiteraard haalt u met deze machine een zeer stabiele CNC draaibank naar uw machinepark. Door de vlakte wat de bedbreedte (305 mm) en de center bieden kunt u er vanuit gaan dat deze machine zeer stabiel is waardoor uw producten nauwkeurig verspaand kunnen worden.
Programmeren vanaf kantoor
Al uw programma’s die u wilt gaan draaien kunt u op een USB-stick plaatsen, maar ook is het mogelijk om de computer van de draaibank in uw netwerk te plaatsen. Hierdoor kunt u buiten de machine om uw programma’s programmeren.
Machine | STYLE 350 | |
---|---|---|
Draaidiameter over bed | mm | 380 |
Draaidiameter over support | mm | 190 |
Afstand tussen centers | mm | 850 |
Bedbreedte | mm | 305 |
Max. gewicht tussen de centers | kg | 300 |
Hoofdspindel | STYLE 350 | |
---|---|---|
Motorvermogen (S6) | kW | 5.5 / 7.5 / 11 |
Doorlaat hoofdspindel | ø mm | 54 |
Max toerental | rpm | 3000 / 4000 |
Spindel opname | D1-6 |
X- en Z-as | STYLE 350 | |
---|---|---|
Ijlgang | m/min | 8 |
Voeding | m/min | 2 |
Losse kop | STYLE | 350 |
---|---|---|
Pinole | ø mm | 54 |
Slag pinole | mm | 100 |
Opname pinole | MK | 4 |
Algemeen | STYLE 350 | |
---|---|---|
Gewicht | kg | 2000 |
Machine afmetingen (l/b/h) | m | 2.5 x 1.8 x 1.8 |
Opties | STYLE 350 |
---|---|
Automatische spanentransporteur | optie |
Automatische gereedschapswisselaar | optie |
Gepositioneerde C-as | – |
Automatische gereedschapswisselaar met aangedreven gereedschap | – |
