De STYLE BT serie bestaat uit zes modellen freesbanken waarbij er bij een aantal modellen gekozen kan worden voor een volledige gesloten machine. De BT 2000 is een ware krachtpatser, De eenvoudige besturing maakt bewerkingen als vlakken en boren in enkele clicks mogelijk. Ook complexe bewerkingen als dimensionaal frezen, het werken met een 4e A-as en het programmeren met G- codes is uiterst eenvoudig.. Deze freesbanken zijn ontworpen en ontwikkeld speciaal voor de productie van maatwerk en kleine series.
Wij ondersteunen u graag!
Erwin Koelewijn
Sales Noord & Oost Nederland

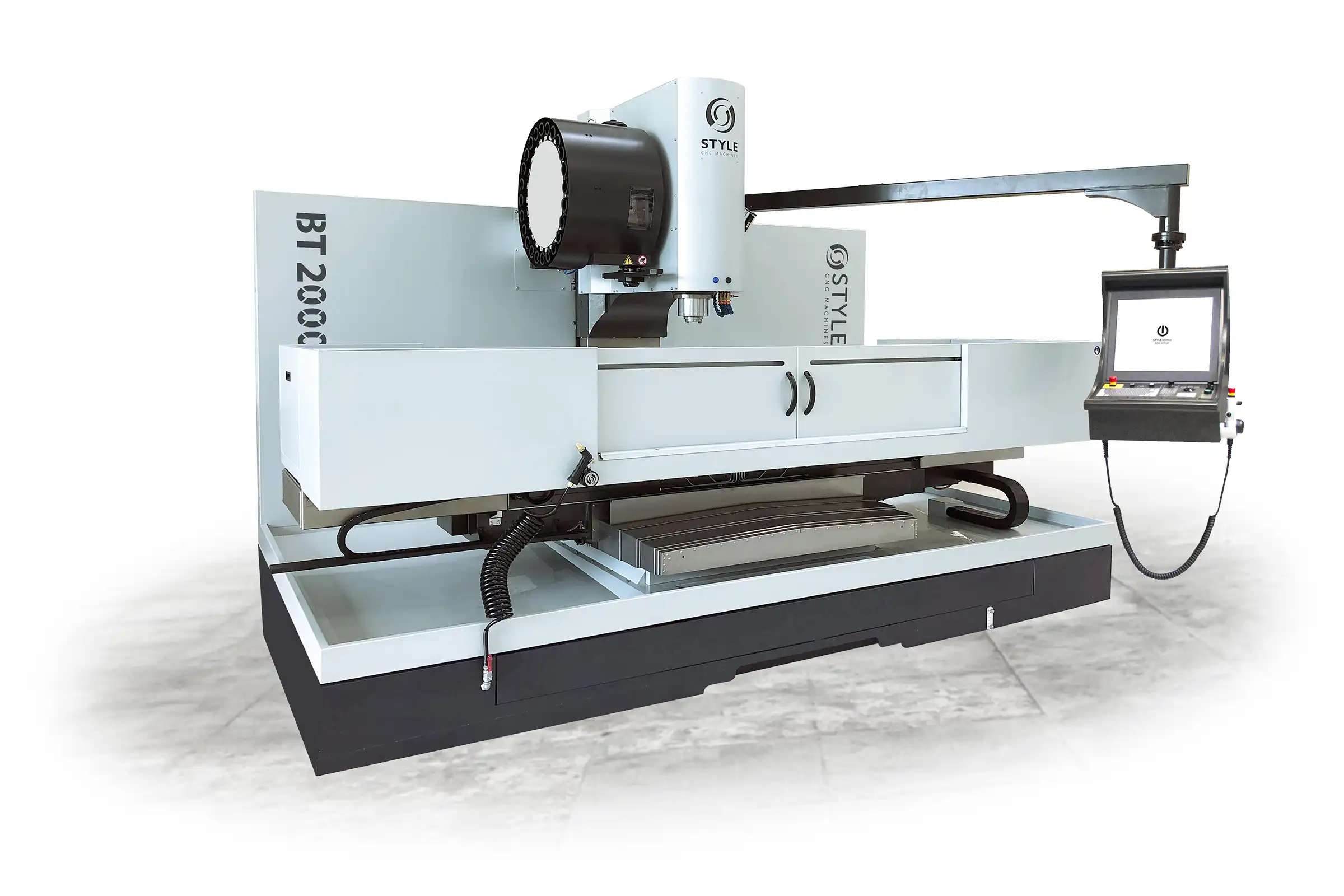

De STYLE BT 2000 maakt CNC-frezen en -boren ook bij enkelstuks en kleine series zeer rendabel. De programmering gaat ongekend snel en eenvoudig, wat resulteert in de kortst mogelijke omsteltijden. Door het zware tabiele bed, ruim bemeten opspantafel en grote werkbereik over de X- ,Y- en Z-as bieden de machines optimale flexibiliteit voor uiteenlopende werkstukken, van eenvoudige tot zeer complexe ontwerpen.
Programmeren vanaf kantoor
Al uw programma’s die u wilt gaan frezen kunt u op een USB-stick plaatsen, maar ook is het mogelijk om de computer van de freesbank in uw netwerk te plaatsen. Hierdoor kunt u buiten de machine om uw programma’s programmeren.
Machine | STYLE BT 2000 | |
---|---|---|
Slag X-as | mm | 2000 |
Slag Y-as | mm | 800 |
Slag Z-as | mm | 7001 / 8002 |
Bedbreedte | mm | 1250 |
Tafelafmeting | mm | 2200 x 600 |
Max. Tafelbelasting | kg | 1500 / 2000 |
Werkhoogte tafel | mm | 900 |
Afstand spilneus-tafel | mm | 120 – 820 |
Afstand spilneus-kolom | mm | 880 |
1 spindelopname 40, 2 spindelopname 50
Hoofdspindel | STYLE BT 2000 | |
---|---|---|
Motorvermogen | kW | 11 / 15 / 18.5 / 22 / 26 |
Max. toerental | rpm | 6000 – 120001 |
6000 – 80002 | ||
Spindelopname | BT – SK/DIN698713 | 40 / 50 |
1 spindelopname 40, 2 spindelopname 50, 3 Kies uit spindelopname BT of SK/DIN69871
X, Y- en Z-as | STYLE BT 2000 | |
---|---|---|
Ijlgang | m/min | 8 |
Voeding | m/min | 4 |
Wisselaar | STYLE BT 2000 | |
---|---|---|
Automatische gereedschapswisselaar6 | # | 24 |
6 Keuze uit verticaal / horizontaal
Algemeen | STYLE BT 2000 | |
---|---|---|
Gewicht | kg | 85001 / 125002 |
Machine afmetingen (l/b/h) | m | 3.8 x 3.0 x 2.9 |
1 spindelopname 40, 2 spindelopname 50
Opties | STYLE BT 2000 |
---|---|
Plaatwerk | open / semi / gesloten |
Geïntegreerde 4e as | optie |
Koeling door de spindel | optie |
